PLC and HMI Control Panels for Machines: Components, Design and Selection

The control panel is the brain of any automatic machine. It holds the PLC, power supplies, relays or contactors, drives and protection devices that make the machine run safely and repeatably. This guide explains what is inside a PLC and HMI control panel, how it is designed and what to define before ordering. It complements our MCC, PCC and VFD panels guide and the electrical panels page.

What Is a PLC?

A programmable logic controller (PLC) is an industrial computer that reads inputs such as sensors and switches, runs a program and controls outputs such as valves, motors and indicators. It is built for factory conditions and continuous running.

What Is an HMI?

A human machine interface (HMI) is a touch screen or display where operators select modes, enter settings, see counts and alarms and read results. A good HMI shows clear messages so faults are found quickly.

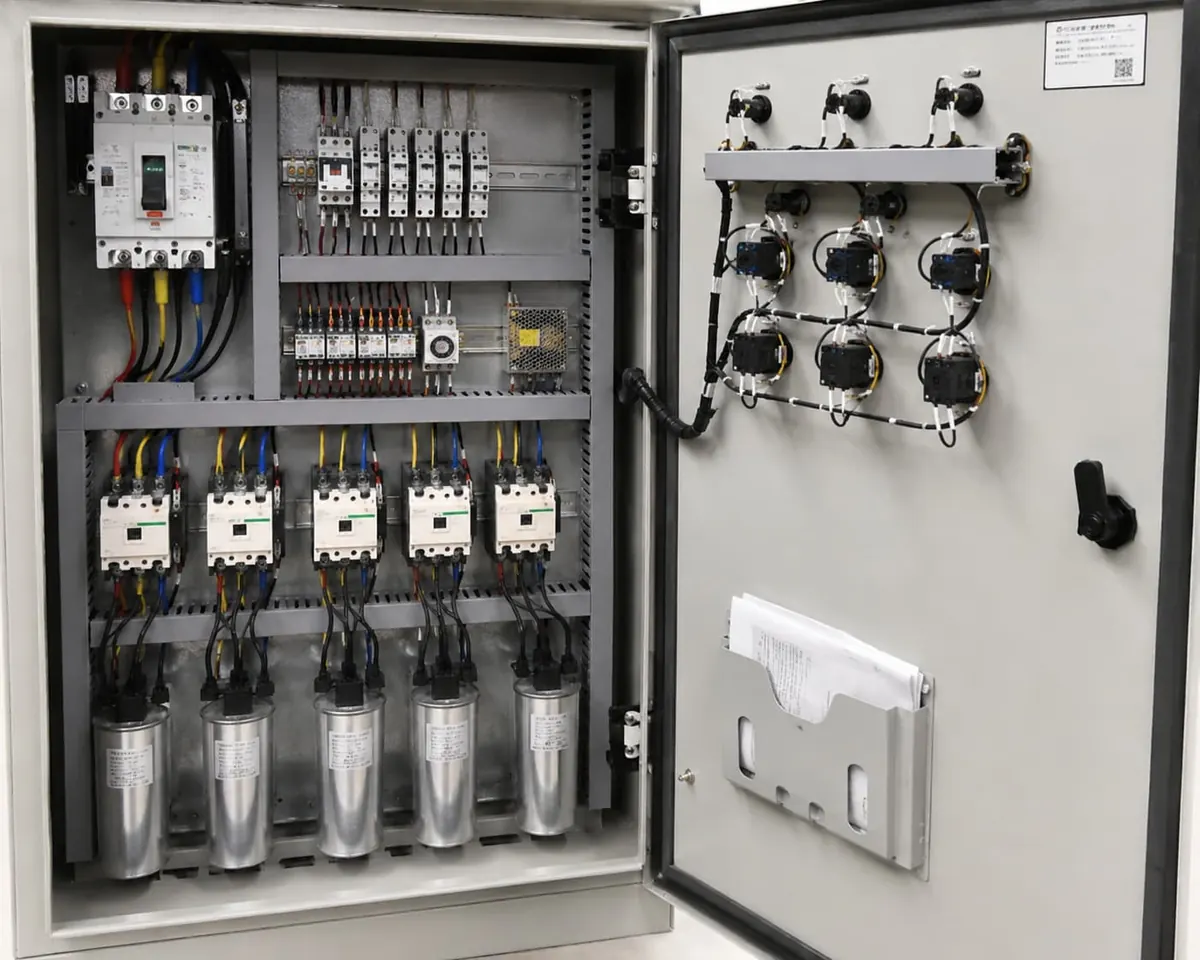

Main Components Inside a Machine Control Panel

Component	Purpose
Incoming isolator and MCB / MCCB	Switches the panel and protects against overload and short circuit
SMPS (24 V DC power supply)	Powers PLC, sensors and solenoid valves
PLC with input and output modules	Runs the machine logic
Contactors and overload relays	Start and protect motors
VFD (variable frequency drive)	Controls motor speed, such as conveyors
Servo drives	Position and speed control for servo axes
Relays and terminal blocks	Interface signals and give tidy wiring
Safety relay and emergency stop	Safe stopping and guard monitoring
Push buttons, selector switches, indicator lamps	Operator controls on the door
Cooling fan or AC, filters	Keeps temperature in limits

Panel Design Points

• Layout: power and control wiring separated, with space for heat and for later additions.
• Wire sizing and colour coding: matched to current and clearly identified with ferrules and numbers.
• Earthing and shielding: good earthing and shielded cables for VFD and sensor signals reduce faults.
• Enclosure rating: chosen for dust, moisture and washdown at the site.
• Heat: drives and power supplies need ventilation or cooling.
• Documentation: circuit drawing and I/O list so future service is easy.

Safety in Machine Control

Emergency stop, guard door interlocks, light curtains and safety relays protect operators. The safety circuit should work independently of normal control logic and be tested regularly.

PLC Program Features Machines Often Need

• Auto, manual and set-up modes
• Recipe or part number selection for different variants
• Production counters and cycle time display
• Alarm history and clear fault messages
• Data logging and barcode integration for traceability

What to Define Before Ordering

• List of inputs and outputs: sensors, valves, motors, drives
• Supply voltage, phase and total load
• Operating environment and required enclosure rating
• HMI size and the language and screens you need
• PLC brand preference or compatibility with existing plant systems
• Safety and data requirements

Control Panels from ASE

Automation Solution Engineering builds PLC and HMI control panels, MCC, PCC, VFD and APFC panels along with its machines and conveyors, so the machine and panel are designed together. Panels can also be supplied separately for your own machines. Share your machine details and I/O list for a quotation. See also SPM machine types.

Frequently Asked Questions

What does a PLC do in a machine?

A PLC reads sensor and switch inputs, runs a stored program and controls outputs such as valves, motors and indicators. It automates machine sequences reliably and repeatably.

What is the difference between a PLC and an HMI?

The PLC runs the logic of the machine. The HMI is the screen where the operator selects modes, enters settings and sees alarms, counts and results.

Why use a VFD in a machine control panel?

A VFD controls motor speed, which allows smooth start and stop, adjustable conveyor or spindle speed and energy saving.

What should I send for a control panel quotation?

Send the machine description, I/O list, motor ratings, supply details, environment and HMI requirements. You can call or WhatsApp 8867148793.
